■ Overview

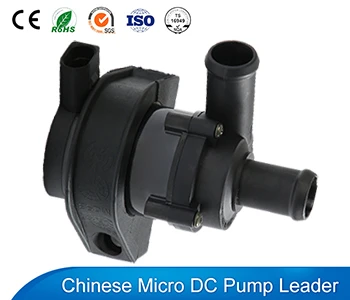

12V motorcycle electric water pump VP50N is a motorcycle electric water pump that helps move the coolant from the radiator to other heating parts to prevent the engine from overheating. It is powered by the motorcycle’s 12 volt battery system. VP50N motorcycle coolant pump built by a 12V brushless DC motor, which with high efficiency, low energy consumption, high flow, low working noise, and small size, making it easy to integrate directly into the existing motorcycle cooling system. It is made of PPS high-temperature resistant material with high reliability, temperature resistance, and long life. 12V motorcycle electric water pump is widely used in motorcycles, mountain bikes, 3-wheelers, racing cars, new energy vehicles, cars, etc.
12V Motorcycle Electric Water Pump Application:
■ Parameter
| Rated Voltage(VDC) | Opearting Voltage(VDC) | Rated Current(A) | Max Head(M) | Max Flow(L/Min) | Power(W) | Noise(dB) |
| 12 | 8~20 | 1.4 | 3 | 25 | 17 | ≤40 |
| 24 | 12~30 | 0.7 | 3 | 25 | 17 | ≤40 |
■ Specifications
| 1 | Max Flow Rate | 25L/MIN |
| 2 | Max Static Lift | 3M |
| 3 | Rated Voltage | 12V/24V |
| 4 | Impeller Type | Closed impeller |
| 5 | Food Grade(Y/N) | N |
| 6 | Liquid Temperature | -40°-125°C |
| 7 | Pump Theory | Centrifugal pump |
| 8 | Motor Type | Brushless DC motor |
| 9 | Ambient Temperature | -40°-120°C |
| 10 | Media | Antifreeze/Pure Water |
| 11 | Waterproof Class | IP65 |
| 12 | Use Place | Vehicle/Indoor |
| 13 | Working Voltage Range | 8V-20V,12V-30V |
| 14 | Power Consumption | 17W |
| 15 | Noise Class form 1M | 40dB /(A) |
| 16 | Ideal Life Time | 20,000 Hours |
| 17 | Working Mode | Continuous |
| 18 | OD of Inlet | 20 mm |
| 19 | OD of Outlet | 20 mm |
| 20 | Dimension | 110.3*84.7*48mm |
| 21 | Weight | 0.36 kg |
| 22 | Power Supply | DC power supply, battery, solar powered |
| 23 | Remarks | Not Self-priming |
